High efficiency 4 heads Straight Line Automatic Liquid Filling macine
Product Description
This Model is special for Filling Production Line, and it is simple and reasonable in design, high in accuracy and easy in operation. Suitable for filling liquid in the industries of pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticide and special trades. With no need for power supply, the machine is safe and with the personalized design, can meet the modern enterprises' requirements. This machine is the semi-automatic double piston liquid detergent filling machine, working under the state without electricity, it is safer to operate. This machine has two or four filling heads in-phase, improving the work efficiency. And the pneumatic part adopts the pneumatic components of Germany FESTO and Taiwan's AirTac. The part contacting materials is made of 316L stainless steel. With adjustment handle of filling volume, the filling speed can be adjusted at will, with high filling accuracy. Filling head adopts anti-leakage, anti-pull and with diving filling device. It save workers and can increase the production capacity rapidly. it,s ideal equipment for production line.
Features:
1. The filling adjustment system is composed of variable frequency motor, PLC and touch screen, solenoid valve, material cylinder, actuator and other combination through control setting,easy to adjust and filling accurate .2. The container positioning system is completed by cylinder. Customer can adjust according to different size and shapes bottles, the method is simple and the positioning is accurate.
3. The anti dripping system adopts cylinder control. When the filling nozzle is blocked, the recycle device for the leakage slot is adopted to further overcome the leakage phenomenon.
4. Some filling materials are easily filled with bubbles. We design the filling nozzle into the outer plug to solve the bubble problem, and use the "PLC" program to control the function of the whole filling edge filling edge, so that the filling measurement is more accurate.
Application:
Suitable for beverage, juice, oil, liquid condiment, cosmetic hair care products, shampoo,bath gel,liquid detergent, lubricating oil and other fluid material quantitative filling, not restricted by the bottle type.
Technical specifications:
Machine model
SM-100-4
SM-300-4
SM-500-4
SM-1000-4
SM-2500-4
SM-5000-4
Filling range
(10-100ml)×4
(30-300ml)×4
(50-500ml)×4
(100-1000ml)×4
(1000-2500ml)×4
(1000-5000ml)×4
Air pressure
4-6kg/cm2
4-6kg/cm2
4-6kg/cm2
5-8kg/cm2
5-8kg/cm2
5-8kg/cm2
Filling speed
20-40bottles/min
20-40bottles/min
20-40bottles/min
20-40bottles/min
15-40bottles/min
15-40bottles/min
Filling precision
Liquid ≤±1%, paste≤±2%
Liquid ≤±1%, paste≤±2%
Liquid ≤±1%, paste≤±2%
Liquid ≤±1%, paste≤±2%
Liquid ≤±1%, paste≤±2%
Liquid ≤±1%, paste≤±2%

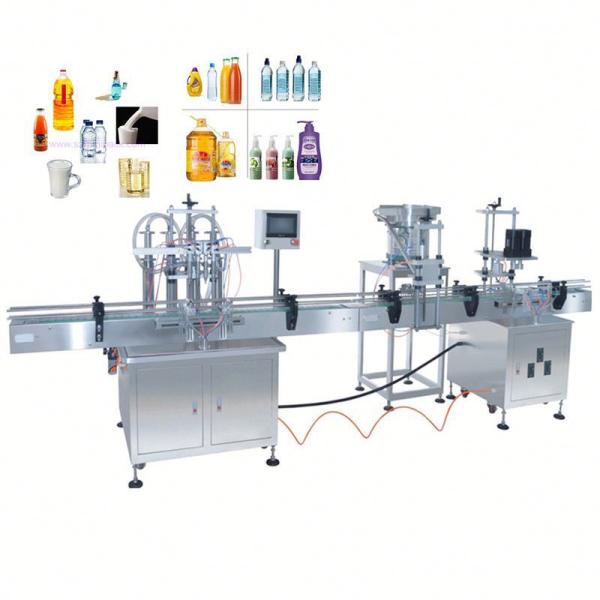

Pictures of automatic liquid filling machine
